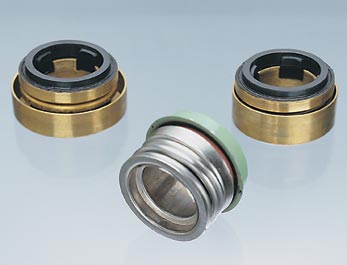

| The construction of this type of
seal is in brass in which brass and rubber are moulded together ,a single
spring is provided on outside diameter of elastomer and inside the brass
body which gives spring action to seal face. |
| Application |
- Salt Water,Electroplating Solutions,Light Acids Etc.
|
| Features |
- Single Acting
- Independent Direction Of Rotation
|
| Seal Faces:- |
Stationery :-ceramic,silicon carbide,carbon,tungsten
carbide etc.
Rotary:- carbon,tungsten carbide,silicon carbide,s.s,stellite etc |
| Operating Limits |
Pressure :- 5 Bar
Temperature :- 120 c |
